Timing belt
Timing belt transmission synthesizes the stringpoins of gear drive,chain drive.It has the feature
of non-slip, Iubrication free, non-pollution,high efficiency,energy saving etc.
Characteristics
High Efficiency
Slip-Free Power Transmission
Long Service Life
Very High Abrasion Resistant
Maintenance Free Operation
|

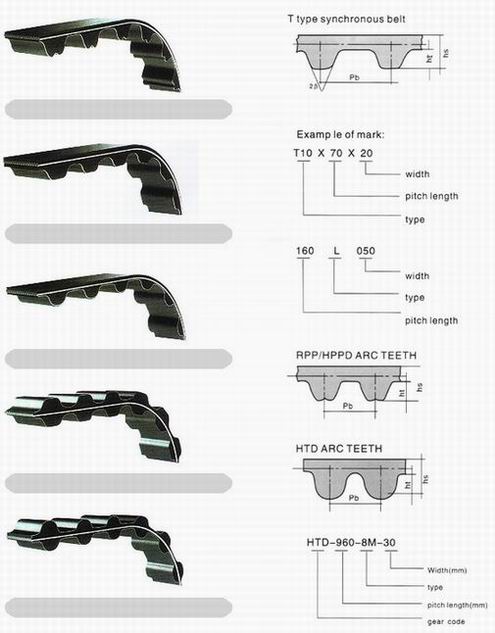

T type industrial rubber timing belt |
|
Type |
Pitch |
Tooth height |
Belt thickness |
Angle |
|
MXL |
2.032 |
0.51 |
1.14 |
40 |
|
XXL |
3.175 |
0.76 |
1.52 |
50 |
|
XL |
5.08 |
1.27 |
2.3 |
50 |
|
PLL |
9.525 |
1.91 |
3.6 |
40 |
|
H |
12.7 |
2.29 |
4.3 |
40 |
|
XH |
22.225 |
6.35 |
11.2 |
40 |
|
XXH |
31.75 |
9.53 |
15.7 |
40 |
|
T2.5 |
2.5 |
0.7 |
1.3 |
40 |
|
T5 |
5 |
1.2 |
2.2 |
40 |
|
T10 |
10 |
2.5 |
4.5 |
40 |
|
T20 |
20 |
5 |
8 |
40 |
|
AT5 |
5 |
1.2 |
 |
|
|
|
|
