Introduction
Raw edged V-belt has the feature of high efficiency transmisson and long life service,It is used in power transmission of fan,water pump,air compressor etc.for auromobile engines
|

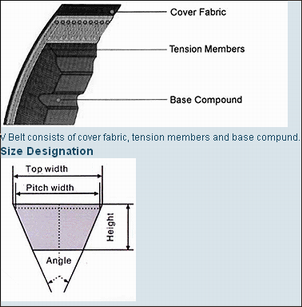

Type |
Top width |
Pitch width |
Height |
Angle |
|
|
|
Common V belt |
Y |
6 |
5.3 |
4 |
40 |
|
|
z |
10 |
8.5 |
6 |
40 |
|
|
A |
13 |
11 |
8 |
40 |
|
|
B |
17 |
14 |
11 |
40 |
|
|
C |
22 |
19 |
14 |
40 |
|
|
D |
32 |
27 |
19 |
40 |
|
|
E |
38 |
32 |
23 |
40 |
|
|
Narrow V belt |
SPZ |
10 |
8 |
8 |
40 |
|
|
SPA |
13 |
11 |
10 |
40 |
|
|
SPB |
17 |
14 |
14 |
40 |
|
|
SPC |
22 |
19 |
|
|
